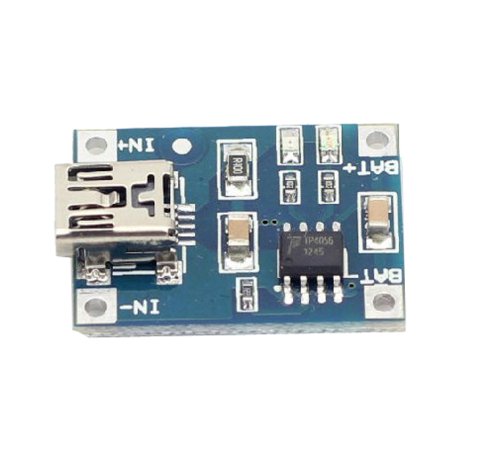

JMT 1A Lithium Battery Charge Module Micro USB Interface
Product ID: 64415614
Secure Transaction
12 interest-free installments with tabby
Description
- Module name Lithium battery charger Board.Charging mode Linear charge.
- Charge current 1A (adjustable).Charging accuracy 1.5%.
- Input voltage 4.5V-5.5V.Full charge voltage 4.2V.
- Charging indication Blue light charge red light charge full Input interface Mike MICRO interface USB.
- Working temperature -10 degree to + 85 degree.
Can reverse No reverse Weight 1.8g External dimensions 25*19*10MM (Taobao minimum volume) Mature charging chip using this module are TP4056, the external circuit is simple, good protection properties, high charging accuracy. This module fully automated processing machinery, SMD parts, each test before shipment, and high reliability. Current can be left to the regulation of this module, just change the fixed resistor in the circuit board, you can change the output to 100mA-1000mA, which is very convenient.
